Rear Torpedo Room Parts to VII-C U-Boats - Scale 1/48

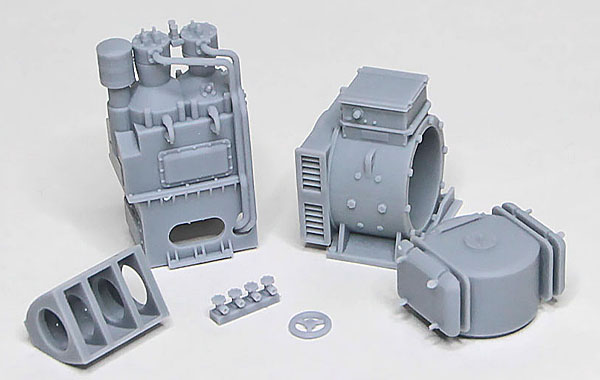

Air Compressor Air compressor. This is an early version of a compressor I designed to VII-C boat, based primarily on photographs rather than original drawings.
Info: 1/48 scale – 6 parts
Ready to print directly (supported)
Download file: 01-aircompressor.stl

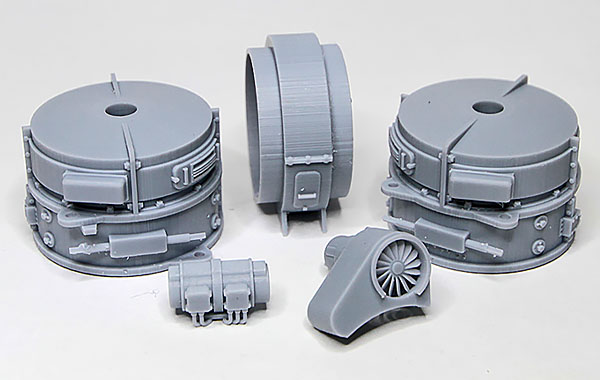

E-motor Port This E-motor based primarily on photographs rather than original drawings.
Info: 1/48 scale – 5 parts
Ready to print directly (supported)
Download file: 01-e-motor-port.stl

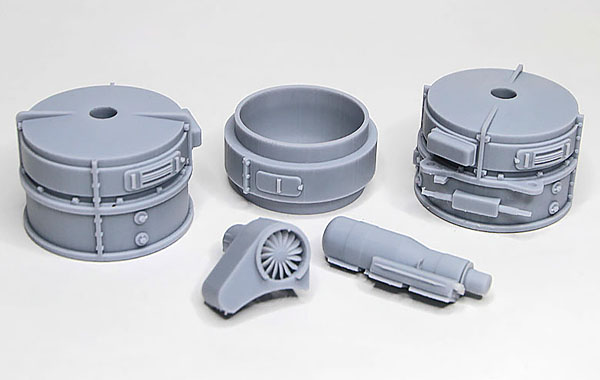

E-motor Starboard This E-motor based primarily on photographs rather than original drawings.
Info: 1/48 scale – 5 parts
Ready to print directly (supported)
Download file: 01-e-motor-stbd.stl

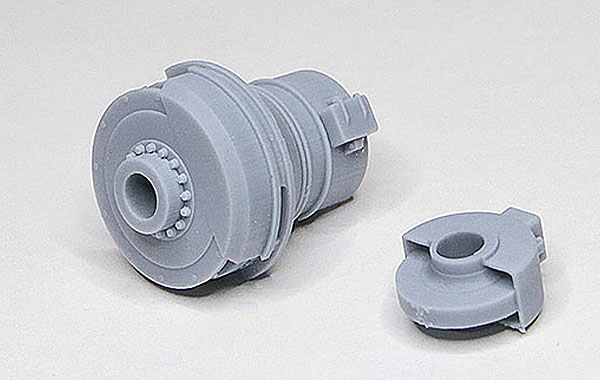

Clutch This clutch based primarily on photographs rather than original drawings.
Info: 1/48 scale – 4 parts
Ready to print directly (supported)
Download file: 01-clutch.stl

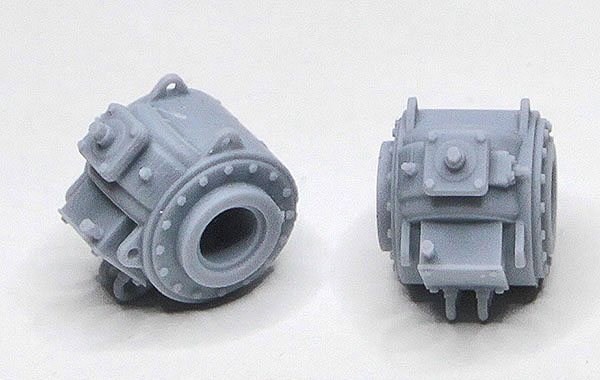

Main bearings These main bearings based primarily on photographs rather than original drawings.
Info: 1/48 scale – 2 parts
Ready to print directly (supported)
Download file: 01-main-bearings.stl

Misc. U-Boat Parts - Scale 1/48

Assorted Valves - small Valve set 01:
Valve sizes 2.8mm - 3.2mm - 3.6mm - 3.8mm

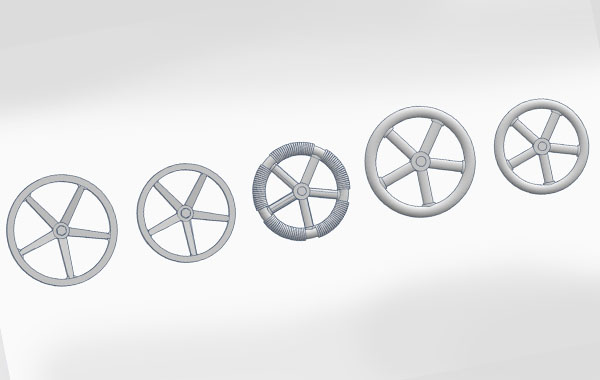

Valve set 02:
Valve sizes 3.0mm - 3.4mm - 3.8mm - 4.4mm

Info: 1/48 scale – (both) 24 valves
Ready to print directly (supported)
Download files: valve-set-01 valve-set-02
Assorted Valves - big Valve set 03:
Valve sizes 4.6mm - 6.0mm - 6.2mm - 7.0mm
Valve 04:
Valve size 12.0mm

Info: 1/48 scale – (set 3 = 6 valves) - (set 4 = 1 valve)
Ready to print directly (supported)
Download files: valve-set-03 valve-04
